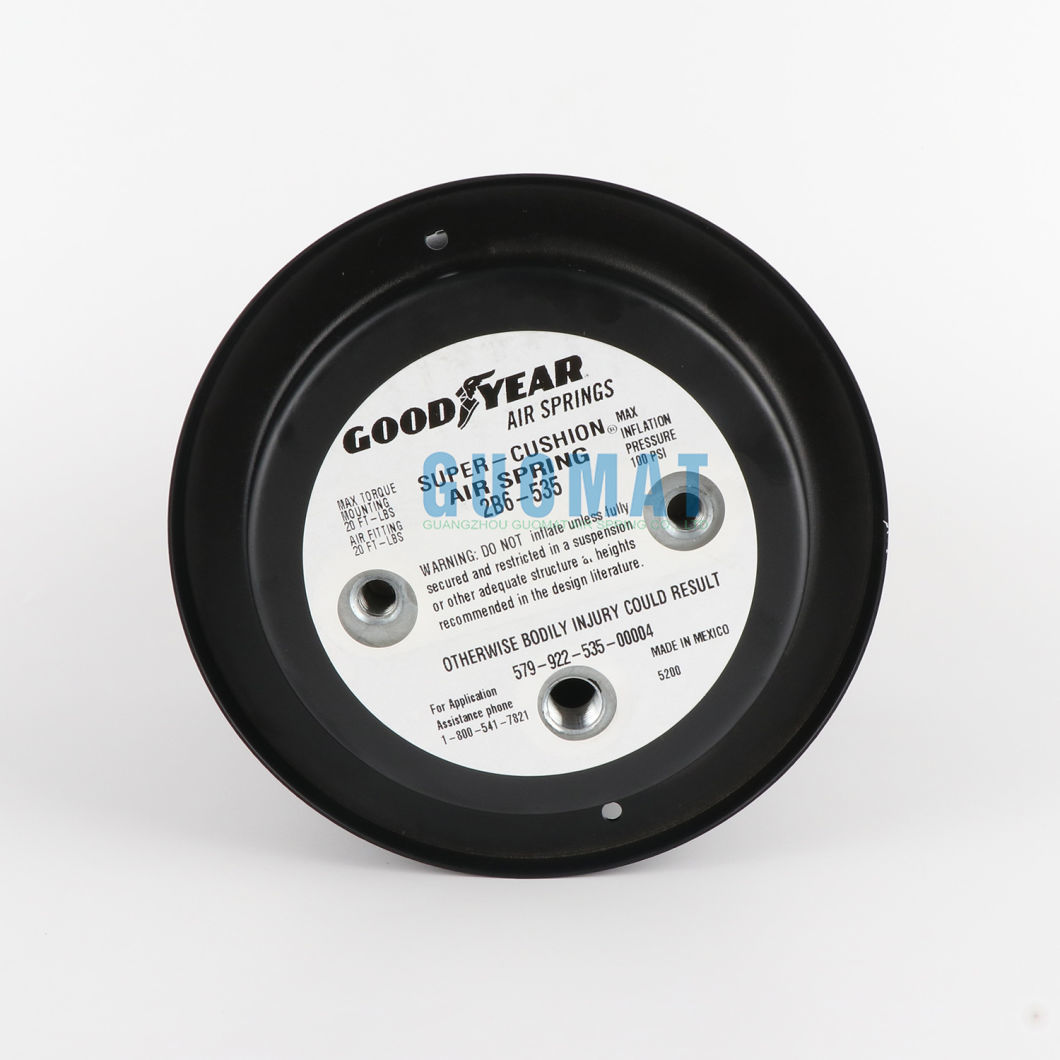

2B6-535 Goodyear Air Spring Original Imported from USA Rubber Suspension Air Spring Bellows Number 579-92-3-515
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.5 kilograms
Package size: 24*24*24 CM
Roof hole / stud: 3
Floor hole / stud: 2
Top plate diameter: 4.15
Base plate diameter: 4.15
Folding height: 2.8
Flexible members: 579-92-3-515
piston:
Piston type:-
Goodyear Trim: 2B6535
Refer to CONTITECH FD110-15766 / FD110-15 766
2B6-535 Goodyear Technical parameters
Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm /2.75 inch
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm
Cover Plate
Top Cover Plate Diameter: 105 mm
Bottom Cover Plate Diameter: 105 mm
Rubber Bellows
Rubber Bellows MAX Diameter: 178 mm
Rubber Bellows Natural Diameter :150 mm
The Working Stroke : MIN 71 mm to MAX 231 mm
Maximum Height : 231 mm
Minimum Height :71mm
Stroke Height : 160mm
Max OD @ 100 psi (Inches):178mm
Bumper block / Buffer block
Without Bumper Block
Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
- Bolt or Stud 1/2-12 or 1/2-20
|
| |
| |
- Tapped hole on top retainers 3/8-16,on pistons-1/2-13
|
- Air Fitting-1/2 NPTF or 3/8 NPTF
|
- Combination strud air fitting-stud-3/4-16,air fitting-1/4 NPTF
|
- Long, trouble-free service, continuously level hauling, and a quiet, cushioned ride
|
- Long-lasting use on nearly all truck and trailer air suspensions
|
- Absorbs road shock, helping tractors and drills last longer
|
- Reduces vibration and driver fatigue
|
